FBX Import error

Post by joschy » 26 Feb 2018, 14:46

Hi,
I setup a simple 3D scene and exported it as a FBX2018 File. When I try to import it it comes a error message:
FBX Error.JPG
Error message
FBX Error.JPG (17.15 KiB) Viewed 1045 times
the fbx file:
Ball-FBX.zip
simple fbx file
(26.14 KiB) Downloaded 43 times
cheers
3DJo - [Ventuz] freelancer and trainer

User avatar
Dennis
Posts: 315
Joined: 08 Jun 2015, 11:29

Re: FBX Import error

Post by Dennis » 26 Feb 2018, 15:10

Yes i did forget to add to the manual to have it at least with: FBX 7.3 (2013) exported...

This is also the version i am using to have a 100% working cross interexchange between all autodesk and other suites...

please try again with the named FBX version and you should be fine..
I tried importing the ball with the animation into C4D and re-exported it with 2013... everything was fine.

Thank you
regArts
Dee

:ugeek:

joschy
Posts: 142
Joined: 19 Jan 2012, 07:39
Location: Düsseldorf, Germany
Contact:

Re: FBX Import error

Post by joschy » 26 Feb 2018, 15:41

sorry, not realy for me...
Only cam and light is imported. I imported the exported cinema fbx in maya and modo and there it is ok.
Cinema file and exported fbx from cinema:
Ball_Cinema.zip
cinema and fbx
(115.27 KiB) Downloaded 44 times
3DJo - [Ventuz] freelancer and trainer

joschy
Posts: 142
Joined: 19 Jan 2012, 07:39
Location: Düsseldorf, Germany
Contact:

Re: FBX Import error

Post by joschy » 26 Feb 2018, 16:15

btw....collada import is fine ;)
3DJo - [Ventuz] freelancer and trainer

u-double-u
Posts: 136
Joined: 03 Dec 2014, 15:46

Re: FBX Import error

Post by u-double-u » 09 Mar 2018, 11:53

FBX import does not work right. As Joshy said, only the camera and the light get imported.

User avatar
Dennis
Posts: 315
Joined: 08 Jun 2015, 11:29

Re: FBX Import error

Post by Dennis » 09 Mar 2018, 12:43

Hello ..

again:

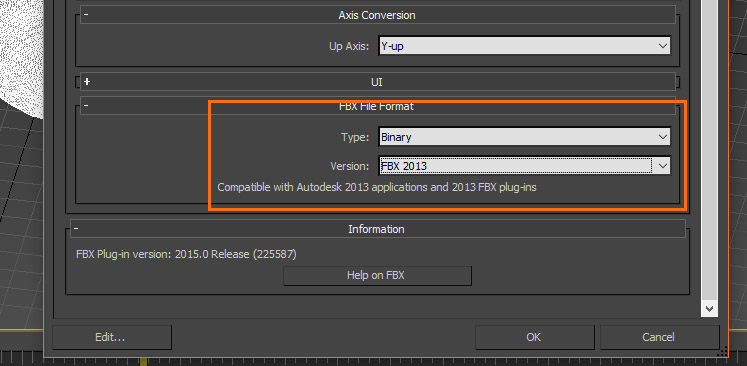

please make sure to use FBX 2013 (7.3) as export version... nothing else...
The issue is with Assimp and not Ventuz... the same goes for interexchange between autodesk software, the newer versions of FBX have big issues. If you try to use the newer FBX version between maya, max, modo and so on you will encounter issues as well.. except you use the 7.3. Sometimes there is an issue.. sometimes on another feature.. sometimes it works..
But where we (including me as 3DSMax Guru) can be sure is : with 2013 7.3 you got at least nearly no issues/problems ... ;)

Best regards
Dee

:ugeek:

u-double-u
Posts: 136
Joined: 03 Dec 2014, 15:46

Re: FBX Import error

Post by u-double-u » 09 Mar 2018, 16:27

First of all, great that C4D Liove Link works pretty well,
But FBX import does not. At least not for me.
Even a simple cube with a green color as texture does not get imported. :(
Weird enough that FBX 7.3 is last recommended version. I don't know what is going on there with these "standards".
Cinema 4D R18

User avatar
Dennis
Posts: 315
Joined: 08 Jun 2015, 11:29

Re: FBX Import error

Post by Dennis » 09 Mar 2018, 23:01

as soon as you confirm that error message .. it is correctly imported .. right?
also with green color?

if not could you please post the c4d file here ?

thanks
dee

:ugeek:

u-double-u
Posts: 136
Joined: 03 Dec 2014, 15:46

Re: FBX Import error

Post by u-double-u » 10 Mar 2018, 13:08

Hi again,
..Yes and no. I tried it again today. The green color does not come with it. Only when checking textures as well on export.So you could say it works.
But when I have a real texture applied in cinema or even a normal map etc, they dont get imported. I have to find and load them manually.
I get the message "geometry import error - unable to handle scheme of..."

The same file exported as a collada 1.5 (and 1.4) does get imported with the texture, but then again here the uv-mapping seems to get lost.
So I will stick to live-link for now.
cheers

User avatar
Dennis
Posts: 315
Joined: 08 Jun 2015, 11:29

Re: FBX Import error

Post by Dennis » 10 Mar 2018, 14:03

Hey,

can you provide all original files please.. so i can read out the files on my own and fix that for the release :)

regArts
Dee
:ugeek:
